No Brand

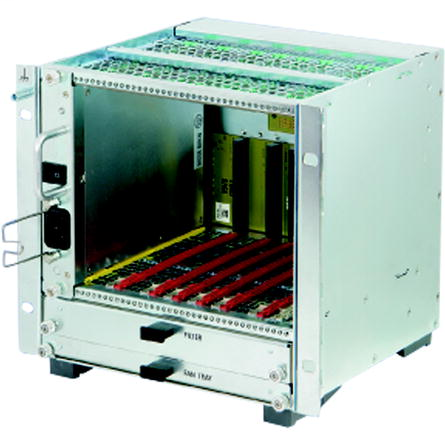

MicroTCA.1 systems, cube, 5 U, 42 HP, for 6 double AdvancedMC modules

Category Electrical Cord Assembly
DDS_181754 DDS_181754
DDS_181754 DDS_181754
DDS_181754 DDS_181754
Starting from
$0.00 / EA
/
LIST PRICE $0.00
%
- +
Add to quick list
Compare

MicroTCA.1 systems, cube, 5 U, 42 HP, for 6 double AdvancedMC modules

Locations:
Item Code: DDS_181754

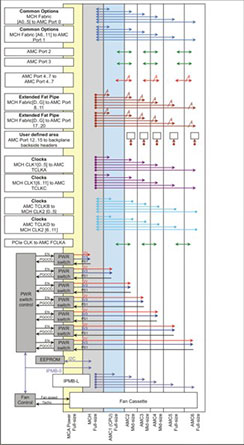

In accordance with PICMG MTCA.1 R1.0 specification. 5 U, 42 HP cube system for 3 double mid‐size and 3 double full‐size AdvancedMC modules, 1 double full‐size MCH and 1 double full‐size PSU slot. Backplane with star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Hot‐swap fan module with cooling unit manager (CU EMMC), airflow from bottom to top. Air filter, exchangeable from front. Pluggable 300 W PSU with AC mains input in double full‐size format, MicroTCA power management (PM EMMC) on backplane
Category Electrical Cord Assembly
Warranty In accordance with PICMG MTCA.1 R1.0 specification. 5 U, 42 HP cube system for 3 double mid‐size and 3 double full‐size AdvancedMC modules, 1 double full‐size MCH and 1 double full‐size PSU slot. Backplane with star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Hot‐swap fan module with cooling unit manager (CU EMMC), airflow from bottom to top. Air filter, exchangeable from front. Pluggable 300 W PSU with AC mains input in double full‐size format, MicroTCA power management (PM EMMC) on backplane

Fetching product details


In accordance with PICMG MTCA.1 R1.0 specification. 5 U, 42 HP cube system for 3 double mid‐size and 3 double full‐size AdvancedMC modules, 1 double full‐size MCH and 1 double full‐size PSU slot. Backplane with star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Hot‐swap fan module with cooling unit manager (CU EMMC), airflow from bottom to top. Air filter, exchangeable from front. Pluggable 300 W PSU with AC mains input in double full‐size format, MicroTCA power management (PM EMMC) on backplane
  • Brand : Own Brand
  • Category : Electrical Cord Assembly
  • Depth : 373.3
  • Height : 222.35

Fetching product details


In accordance with PICMG MTCA.1 R1.0 specification. 5 U, 42 HP cube system for 3 double mid‐size and 3 double full‐size AdvancedMC modules, 1 double full‐size MCH and 1 double full‐size PSU slot. Backplane with star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Hot‐swap fan module with cooling unit manager (CU EMMC), airflow from bottom to top. Air filter, exchangeable from front. Pluggable 300 W PSU with AC mains input in double full‐size format, MicroTCA power management (PM EMMC) on backplane
  • Brand : Own Brand
  • Category : Electrical Cord Assembly
  • Depth : 373.3
  • Height : 222.35
