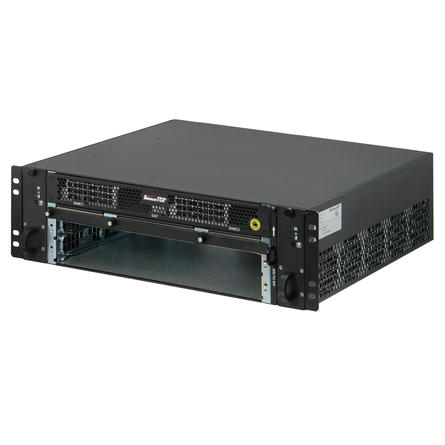

AdvancedTCA 450/40 series, 2 slot, DC, Node/node configuration
Item Code: DDS_183385
Category
Electrical Cord Assembly

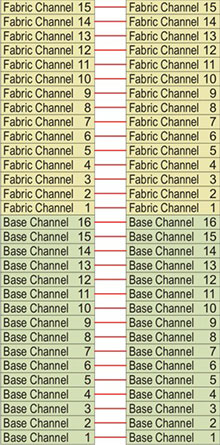

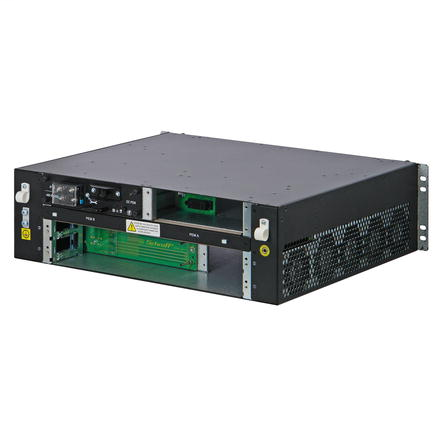

Warranty UL recognized. Conforms to AdvancedTCA Standard PICMG 3.0 rev. 3.0. 40 G backplane with 2 slots, 15‐way connected fabric interface;. 450 W cooling capacity per slot at an ambient temperature of 55 °C. Input voltage -48 VDC/-60 VDC, two redundant power entry modules (PEM), optionally equipped with. Two hot swap fan trays, airflow from right to left (push/pull cooling), air filter exchangeable from front. Prepared for one shelf alarm panel and two Schroff shelf managers with Pigeon Point ShMM 500 for bussed IPMB
