MicroTCA.0 system, 4 U, 84 HP, for 12 single mid‐size AdvancedMC modules

Category Electrical Cord Assembly
DDS_181699 DDS_181699
DDS_181699 DDS_181699
DDS_181699 DDS_181699
Starting from
$0.00 / EA
/
LIST PRICE $0.00
%
- +
Add to quick list
Compare

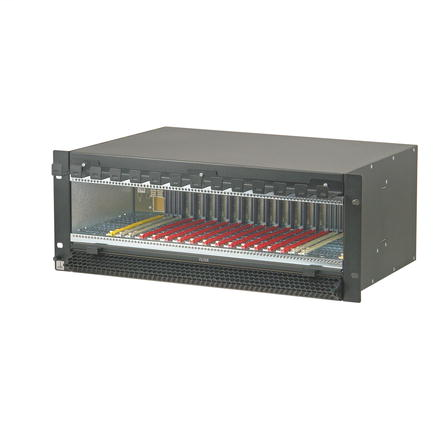

MicroTCA.0 system, 4 U, 84 HP, for 12 single mid‐size AdvancedMC modules

Locations:
Item Code: DDS_181699

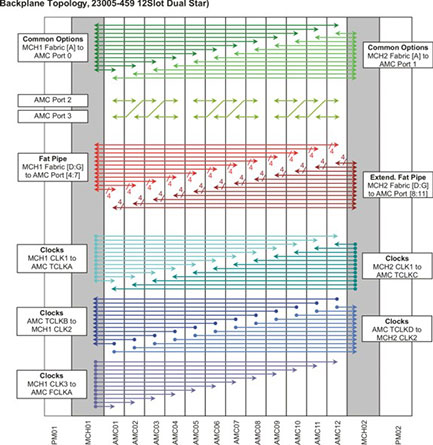

In accordance with PICMG MTCA.0 R1.0 specification. 4 U, 19" subrack system for 12 single mid‐size AdvancedMC modules, 2 single full‐size MCHs and 2 power modules with width up to 12 HP. Backplane with dual star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Two hot‐swap fan modules on rear of case, each with cooling unit manager (CU EMMC), airflow from bottom front to rear. Air filter, exchangeable from front, with presence signal
Category Electrical Cord Assembly
Warranty In accordance with PICMG MTCA.0 R1.0 specification. 4 U, 19" subrack system for 12 single mid‐size AdvancedMC modules, 2 single full‐size MCHs and 2 power modules with width up to 12 HP. Backplane with dual star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Two hot‐swap fan modules on rear of case, each with cooling unit manager (CU EMMC), airflow from bottom front to rear. Air filter, exchangeable from front, with presence signal

Fetching product details


In accordance with PICMG MTCA.0 R1.0 specification. 4 U, 19" subrack system for 12 single mid‐size AdvancedMC modules, 2 single full‐size MCHs and 2 power modules with width up to 12 HP. Backplane with dual star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Two hot‐swap fan modules on rear of case, each with cooling unit manager (CU EMMC), airflow from bottom front to rear. Air filter, exchangeable from front, with presence signal
  • Brand : Own Brand
  • Category : Electrical Cord Assembly
  • Depth : 296.0
  • Height : 177.8

Fetching product details


In accordance with PICMG MTCA.0 R1.0 specification. 4 U, 19" subrack system for 12 single mid‐size AdvancedMC modules, 2 single full‐size MCHs and 2 power modules with width up to 12 HP. Backplane with dual star topology, direct connections for S‐ATA/SAS. Clock topology to PICMG AMC.0 R2.0. Two hot‐swap fan modules on rear of case, each with cooling unit manager (CU EMMC), airflow from bottom front to rear. Air filter, exchangeable from front, with presence signal
  • Brand : Own Brand
  • Category : Electrical Cord Assembly
  • Depth : 296.0
  • Height : 177.8
