Siemens

Sinamics PM240-2 IP20-FSB-U-230V-2.2KW

Category Inverter Drive AC
DDS_1269729 DDS_1269729
DDS_1269729 DDS_1269729
DDS_1269729 DDS_1269729
Starting from
$0.00 / EA
/
LIST PRICE $0.00
%
- +
Add to quick list
Compare
Siemens

Sinamics PM240-2 IP20-FSB-U-230V-2.2KW

Locations:
Item Code: DDS_1269729

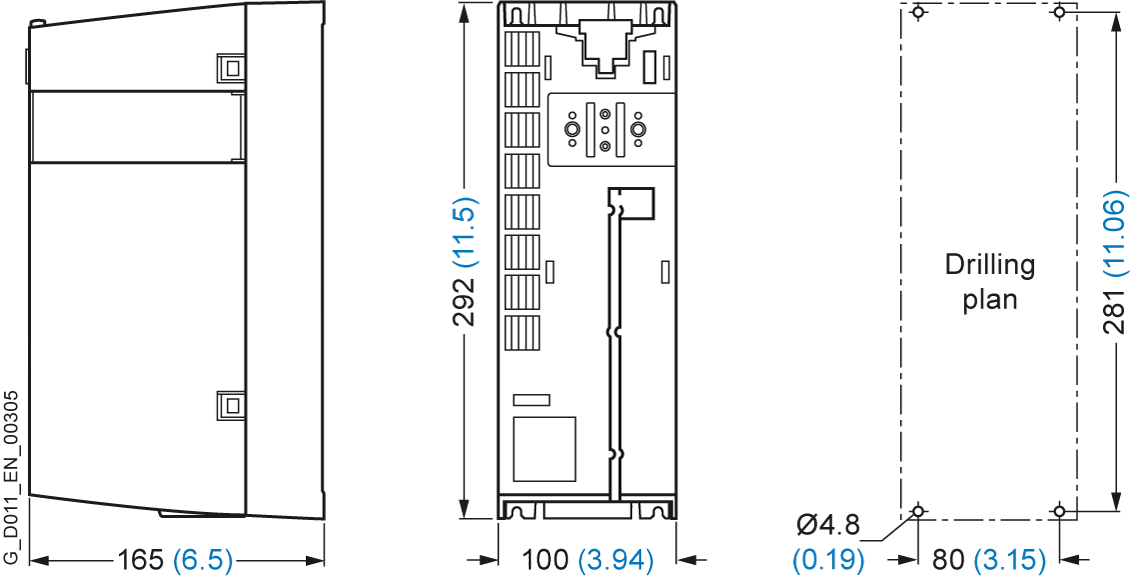

Sinamics Power Module PM240-2 without filter with built in braking chopper 1/3AC200-240V +10/-10% 47-63HZ Output High Overload: 1.5KW for 200% 3S,150% 57S,100% 240S Ambient Temperature -10 to +50 Degree C Output low Overload: 2.2KW for 150% 3S,110% 57S,100% 240S Ambient Temperature -10 to +40 Degree C 291 X 100 X 165 (HXWXD), FSB Protection IP20 without Control Unit and Panel approved for CU Firmware- Version V4.6
Category Inverter Drive AC
Warranty Sinamics Power Module PM240-2 without filter with built in braking chopper 1/3AC200-240V +10/-10% 47-63HZ Output High Overload: 1.5KW for 200% 3S,150% 57S,100% 240S Ambient Temperature -10 to +50 Degree C Output low Overload: 2.2KW for 150% 3S,110% 57S,100% 240S Ambient Temperature -10 to +40 Degree C 291 X 100 X 165 (HXWXD), FSB Protection IP20 without Control Unit and Panel approved for CU Firmware- Version V4.6

Fetching product details


Sinamics Power Module PM240-2 without filter with built in braking chopper 1/3AC200-240V +10/-10% 47-63HZ Output High Overload: 1.5KW for 200% 3S,150% 57S,100% 240S Ambient Temperature -10 to +50 Degree C Output low Overload: 2.2KW for 150% 3S,110% 57S,100% 240S Ambient Temperature -10 to +40 Degree C 291 X 100 X 165 (HXWXD), FSB Protection IP20 without Control Unit and Panel approved for CU Firmware- Version V4.6
  • Brand : Siemens
  • Category : Inverter Drive AC
  • Certifications : C-Tick
  • Cooling Concept : Internal Air Cooling
  • Depth : 165
  • Efficiency : 96
  • Frequency : 63
  • Height : 292
  • Horsepower : 2
  • IP Rating : IP20
  • Standard : C-Tick (RCM)
  • Weight : 2.9
  • Width : 100

Fetching product details


Sinamics Power Module PM240-2 without filter with built in braking chopper 1/3AC200-240V +10/-10% 47-63HZ Output High Overload: 1.5KW for 200% 3S,150% 57S,100% 240S Ambient Temperature -10 to +50 Degree C Output low Overload: 2.2KW for 150% 3S,110% 57S,100% 240S Ambient Temperature -10 to +40 Degree C 291 X 100 X 165 (HXWXD), FSB Protection IP20 without Control Unit and Panel approved for CU Firmware- Version V4.6
  • Brand : Siemens
  • Category : Inverter Drive AC
  • Certifications : C-Tick
  • Cooling Concept : Internal Air Cooling
  • Depth : 165
  • Efficiency : 96
  • Frequency : 63
  • Height : 292
  • Horsepower : 2
  • IP Rating : IP20
  • Standard : C-Tick (RCM)
  • Weight : 2.9
  • Width : 100
